تفاصيل المنتج:
|
| الفواتير: | بالوزن النظري | تكنيك: | المدرفلة على البارد / المدرفلة على الساخن |
|---|---|---|---|
| قطر خارج: | 6-630 ملم | الكلمة الرئيسية: | شريط دائري |
| حالة المعالجة الحرارية: | س+ت، الحل المعالج، الخ. | جودة: | اختبار MTC |
| مميزة: | مقاومة للتآكل | الاستخدام: | يموت الصلب على البارد |
| تكنولوجيا: | المدرفلة على البارد المدرفلة على الساخن | درجة حرارة العمل: | 0 ~ 250 درجة مئوية |
| التسامح: | 3% | استخدام خاص: | فولاذ الصمام |
| قوة الشد: | يختلف حسب الدرجة | المعايير: | أستم A276، A484، A582 |
| منتجات: | الفولاذ المقاوم للصدأ طحن شريط دائري |
| ITEM | Stainless Steel Bar / Stainless Steel Rod |
| Type | Stainless Steel Round Bar Rod |
| Grade | 201 202 304 304L 316 316L 309 310 310S 409L 410 420 430 904L 2205 2507 |
| Surface Finish | Polish,Black,bright,rough turned,grinding,centreless Ground etc |
| Standard | JIS,GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Technique | Cold Rolled; Hot Rolled;Cold Drawn,Forged |
| Testing Methods | Flaw detection, Eddy current testing, Hydrostatic testing or Ultrasonic examination and also with chemical and physical property inspection |
| Diameter | 3-480mm |
| Length | 3000mm, 4000mm,5800mm,6000mm,12000mm,or as required. |
| Application | Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. |
| Lead Time | 7-15 working days after the receipt of 30% deposit |
| Payment Terms | 30% TT for deposit,70% TT balance before shipment. |
| Price Terms | FOB, EXW, CIF, CFR |
| Packing | Standard Seaworthy Package or according to customer's requirements |
| Application | Stainless steel bars are widely used in metal utensils, shipbuilding, petrochemical, machinery, medicine, food, electricity, energy, construction and decoration, nuclear power, aerospace, military and other industries. |
| Grade | 200 series: 201,202,202Cu,204Cu,
300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330,
400 series:409/L,410,416/F,420/F,430,431,440C,441,444,446,
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D,
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNSS32760,2304,LDX2101. LDX2404,LDX4404,904L
Others:153Ma,254SMo,253Ma,654SMo,F15,Invar36,1J22,N4,N6 etc
Alloy: Alloy 20/28/31;
Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/C276/C-2000/G-35/G-30/X/N;
Haynes: Haynes 230/556/188;
Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter20;
Incoloy:Incoloy800/800H/800HT/825/925/926;
GH:GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
Monel: Monel 400/K500
Nitronic:Nitronic 40/50/60;
Nimonic: Nimonic 75/80A/90;
|
| INTERNATIONAL STEEL GRADES | |||||
| ISO | DIN | USA | |||
| X5CrNiCuNb15-5 | ISO683-17(2003) | 1.4545 | DIN17400 | 15-5PH | SAE |
| USA | USA | China | |||
| S15500 | ASTM A276 | XM-12 | UNS | 05Cr15Ni5Cu4Nb | GB1299-2000 |

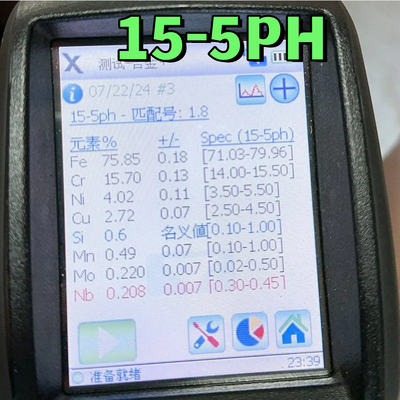

| CHEMICAL COMPOSITION | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Nb | Cu |
| ≤0.07 | ≤1.00 | ≤0.70 | ≤0.030 | ≤0.015 | 14.50-15.50 | 4.50-5.50 | 0.15-0.35 | 2.50-3.20 |
| PRODUCTION FLOW&TECHNICAL INDEX | |
| Size Range | Round 80-300mm; Flat 80-300mmx300-800mm |
| Smelting | EAF+LF+VD+ESR |
| Production Process | Hot Forged+Solid Solution&Aging(38-42HRC) |
| Mechanical Property | It can be machined under any of the attainable conditions. Firstly, the alloy is mildly formed in the overaged condition. It is then welded using welding techniques such as shielded fusion or resistance methods. The material is heat treated at 1038°C (1900°F) for 1/2 h, and then air cooled. This process is followed by hot-working the material and annealing at 1038°C (1900°F) for 1 h. Finally, the alloy can be cold-worked to improve its yield strength. |
| Forging Ratio | ≥6:1 |
| Surface | Machined |
| Non-metallic Inclusions | Acc. To ASTM E45 or finer A(Thin 1.0 Heavy 1.0); B(Thin 1.5 Heavy 1.5); C(Thin 1.0 Heavy 1.0); D((Thin 1.5 Heavy 1.5); |
| Grain Size | Acc. To ASTM E112≥ 5 or finer |
| UT | SEP1921-84 3 D/d or finer |
