تفاصيل المنتج:
|
| يكتب: | دائري | طلب: | البناء والديكور والصناعة الميكانيكية |
|---|---|---|---|
| معيار: | DIN ، ASTM ، AISI ، JIS ، EN | درجة: | S41500 ， SUSF6NM ， DIN 1.4313 X3CrNIMO13-4 |
| شكل: | دائري | إصدار الشهادات: | ISO,BV,SGS |
| أبعاد: | 3 مم - 800 مم | سطح: | مشرق ، مصقول ، أسود |
| تقنية: | مسحوب على البارد وملفوف على الساخن | التعبئة: | الحزمة القياسية الصالحة للإبحار |
| مصطلح السعر: | CIF CFR FOB EX-WORK | ||
| إبراز: | X3CrNiMo13-4 stainless steel round bar,F6NM sour service round bar,Super martensitic oil & gas steel |
||

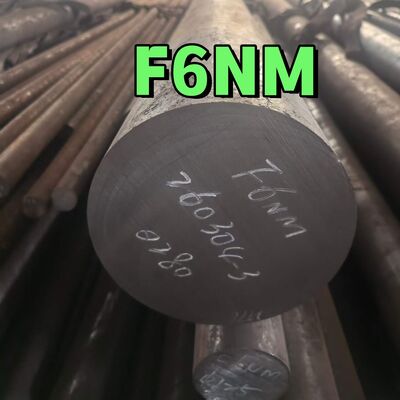

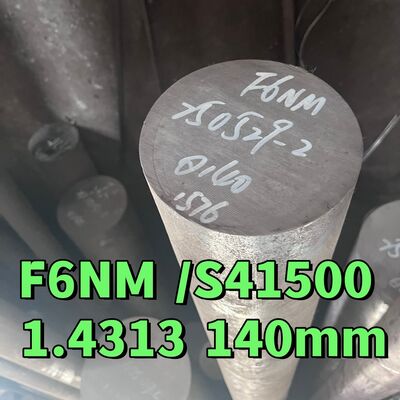

ASTM A182 Grade F6NM / EN 1.4313 (X3CrNiMo13-4) Super Martensitic Stainless Steel
F6NM, also known as UNS S41500 and German standard EN 1.4313, is a low-carbon nickel-molybdenum alloyed super martensitic stainless steel, specified under ASTM A182, A276, A479 and EN 10088-3.
With controlled low carbon, 13% chromium, 4% nickel and 0.7% molybdenum, F6NM delivers high tensile strength, exceptional sub-zero impact toughness down to -60°C, improved weldability and outstanding resistance to chloride pitting, crevice corrosion and sulfide stress cracking (SSC), fully compliant with NACE MR0175 / ISO 15156 for sour oil & gas environments.
After solution annealing at 1025–1065°C followed by double tempering at 595–620°C, the material achieves a maximum hardness of 23 HRC for sour service applications. It exhibits excellent cavitation erosion resistance, making it ideal for hydraulic and hydro power components.
Main applications: valve bodies, valve stems, pump shafts, turbine blades, hydro runner parts, forged flanges and pipeline fittings in petroleum, petrochemical, marine, power generation and hydropower industries.

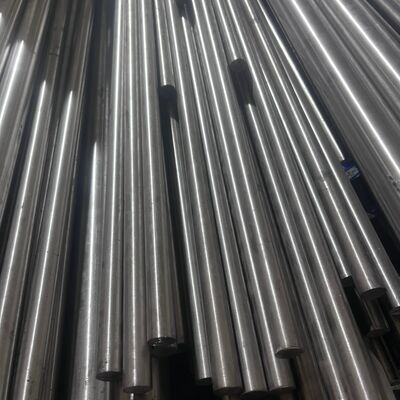

Available products: round bar, flat bar, plate, seamless pipe, forgings, flanges and fittings, supplied with DIN EN 10204 3.1 / 3.2 test certificates for European market.
|
Steel Grade
|
Specification
|
Specification Name
|
|
04Cr13Ni5Mo / S41595
|
GB/T 3280
|
Cold rolled stainless steel plate, sheet and strip
|
|
GB/T 4237
|
Hot rolled stainless steel plate, sheet and strip
|
|
|
UNS S41500
|
ASTM A276/A276M
|
Standard specification for stainless steel bars and shapes
|
|
ASTM A240/A240M
|
Standard specification for Cr and Cr-Ni stainless steel plate, sheet and strip for pressure vessels and for general applications
|
|
|
ASTM A479/A479M
|
Standard Specification for Stainless Steel Bars and Shapes for Use in Boilers and other Pressure Vessels
|
|
|
1.4313 / X3CrNiMo13-4
|
EN 10088-2
|
Stainless Steel Part 2-Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purpose
|
|
EN 10088-3
|
Stainless Steels Part 3-Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
|
|
|
EN 10272
|
Stainless steel bars for pressure purposes
|
|
|
SUS F 6NM
|
JIS G3214
|
Stainless steel forgings for pressure vessels
|
|
Elements
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
N
|
|
Content%
|
≤0.05
|
≤0.70
|
≤1.50
|
≤0.040
|
≤0.015
|
3.50~4.50
|
12.00~14.00
|
0.30~0.70
|
≥0.02
|
|
Products produced as per other specifications or technical agreements (if need) are available.
|
|||||||||
|
Delivery Condition
|
Mechanical Properties
|
|||||
|
Rp0.2/(N/mm2)
|
Rm/(N/mm2)
|
A/%
|
Zb/%
|
AkV2d/J
|
HBW
|
|
|
Annealed
|
/
|
≤1100
|
/
|
/
|
/
|
≤320
|
|
Q+T 700
|
≥520
|
700~850
|
≥15
|
/
|
≥70
|
/
|
|
Q+T 780
|
≥620
|
780~980
|
≥15
|
/
|
≥70
|
/
|
|
Q+T 900
|
≥800
|
900~1100
|
≥12
|
|
≥50
|
/
|
|
Products produced as per other specifications or technical agreements (if need) are available.
|
||||||
Q1:Are you trading company or manufacturer ?
We are professional manufacturer for many years. we can provide a wide range of steel products.
Q2:What is alloy steel round bar export packing?
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
Q3.What is your MOQ?
We accept small order,if it is stock,any quantities can be accepted.
Q4.What is your lead time?
Depends actual order,around 20-35 days,or negotiation.
Q5.Can you supply sample?
Yes,we can.Sample fee according to your size.
Q6:What certificates do you have?
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
