تفاصيل المنتج:
|
| مادة: | ستانلس ستيل 904 لتر | الانتهاء: | مسحوق مغلف ، غير مطلي ، مجلفن |
|---|---|---|---|
| يكتب: | غلاية زهرة / الرش، مجموعات الدعاية | نوع المعدن: | الفولاذ المقاوم للصدأ |
| أسلوب: | موردن بسيط | حالة الاستخدام: | أرضية |
| تستخدم مع: | زهرة/نبات أخضر | مقاس: | حجم مخصص ، حسب طلبك |
| شكل: | مستوي | سماكة: | 1.5-3 مم أو حسب الطلب |
|
Product Name
|

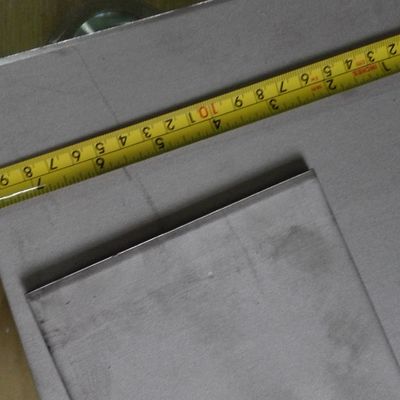

Stainless Steel Plate / Stainless Steel Sheet
|
|
Material
|
201 301 304 304L 316 316L 316Ti 321 309S 310S 410S 420 430 409 439 2205 2507 904L etc.
|
|
Finish(Surface)
|
No.1/2B/NO.3/NO.4/BA/Brushed/HL/Mirror/Embossed etc.
|
|
Technique
|
Cold Rolled / Hot Rolled
|
|
Thickness
|
0.3mm-8mm(cold rolled) 3-120mm (hot rolled)
|
|
Length
|
1000mm-6000mm or customized
|
|
Width
|
1000mm-2000mm or customized
|
|
Application
|
Stainless steel sheets can apply to construction field, ships building industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry ,machinery and hardware fields.
Stainless steel sheet can be made according to the customer's requirements. |
|
Tips
|
The sizes or thicknesses of stainless steel sheets can be customized, if you need additional information, please don't hesitate to contact us at any time.
|
1. Products Details
| China GB | BESN | ASTM |
| 00Cr20Ni25Mo4.5Cu | 1.4539 | 904L |
Features
Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid. The steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability.
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| 904L |
min. max. |
- 0.02 |
- 2 |
- 1 |
- 0.045 |
- 0.035 |
19 23 |
4 5 |
23 28 |
1 2 |
Proprerties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 904L | 490 | 220 | 36 | 70-90 typical | 150 |
Fabrication
Grade 904L stainless steels are high purity steels with low sulphur content. They can be machined using any standard methods. These grades can be readily bent to a small radius under cold conditions. Although subsequent annealing is not required in most cases, it should be carried out when the fabrication is performed under severe stress corrosion cracking conditions.
Application
Some of the major applications of grade 904L stainless steels include:
Wiring in electrostatic precipitators,Oil refinery components
Seawater cooling devices,Gas scrubbing plants
Pulp and paper processing industries
Acetic, phosphoric and sulphuric acid processing plants
