تفاصيل المنتج:
|
| OD: | 16-500 ملم | طول: | 3-6 م 9 م 12 م |
|---|---|---|---|
| سطح: | أسود ومشرق | يكتب: | المعدات الصناعية |
| الصف الصلب: | سبيكة الصلب | شكل: | دائري |
| اسم المنتج: | 1.6580 30CrNiMo8 qt أشرطة مستديرة من الفولاذ | المعالجة السطحية: | أسود / تقشير / تلميع / تشكيله |
| حالة التسليم: | صلب، المدرفلة على الساخن/مزورة | المعالجة الحرارية: | تطبيع + صلب + مروي + خفف |
| إبراز: | Hot Forged DIN 1.6580 steel bar,30Cr2Ni2Mo alloy tool steel,Quenched and tempered steel round bar,30Cr2Ni2Mo alloy tool steel,Quenched and tempered steel round bar |
||

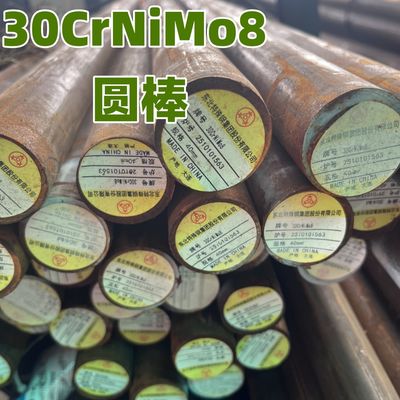

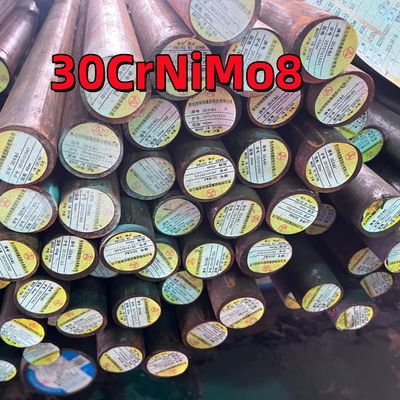

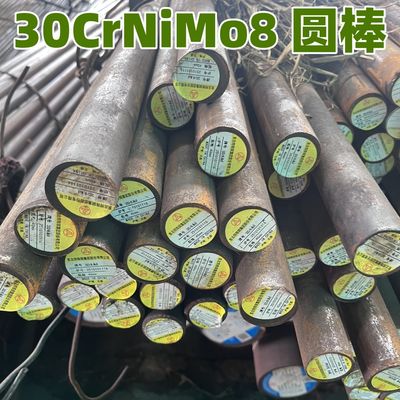

DIN 30CrNiMo8 1.6580 30NCD8 QT Hot Forged Alloy Steel Round Bar
1. introduction
DIN 30CrNiMo8 steel is a medium carbon alloy structural steel which contain nickel,chromium and molybdenum. It's with medium hardenability designed for heavy duty compoents. It is also known as it's resistance to variable loads and impacts. It could characterize by high elasticity and tensile strength reaching over 1560Mpa. This material is used for production of heavily loaded parts, shafts and drive axes, steering shafts, crankshafts of engine, crews and element exposed to temperatures in the power industy. But this material is not suitable for welding and ultimately require additional preheating.
2. equivalent
| Country | Japan | Euro | French | USA |
| Standard | / | EN10083 | NF | / |
| Grade | / | 30CrNiMo8/1.6580 | 30CND8/30NCD8 | / |
3. chemical composition
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
| 30CrNiMo8 | 0.26-0.34 | 0.4 | 0.3-0.6 | 0.025 | 0.035 | 1.8-2.2 | 0.3-0.5 | 1.8-2.2 |
| 30NCD8 | 0.26-0.34 | 0.1-0.4 | 0.3-0.6 | 0.030 | 0.025 | 1.8-2.2 | 0.3-0.5 | 1.8-2.2 |
4. mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5. overviews
| Size | Round | Dia 30-1200mm |
| Plate/Flat/Block | Thickness 6mm-500mm |
|
| Width 20mm-1000mm |
||
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Delivery time | 30-45 days | |
| Application | 30CrNiMo8 used for production of heavily loaded parts, shafts and dirve axes, steering shafts, crankshaft of engine, crews and element exposed to temperatures in the power industry and so on. | |
6. Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed/QT rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
For hot forged plate, usually the delivery condition is hot forged, annealed/QT, milled surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
| Nominal diameter(mm): or for flat products thickness: to 8; 8-20; 20-60; 60-100; 100-160; | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
| Re - Upper yield strength or Rp0.2 - 0.2% proof strength (MPa) (+QT) |
1050 | 1050 | 900 | 800 | 700 |
| Nominal thickness(mm): | to 160 | 160 - 330 | 330 - 660 |
| Re - Upper yield strength (MPa) (+QT) | 700 | 630 | 590 |
| KV - Impact energy (J) longitud., (+QT) | +20° 30-45 |
| KV - Impact energy (J) transverse, (+QT) | +20° 20-27 |
| A - Min. elongation at fracture (%) transverse, (+QT) | 8-14 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) (+QT), round products | 9 | 9 | 10 | 11 | 12 |
| Nominal diameter (mm): or for flat products thickness: to 8; 8-20; 20-60; 60-100; 100-160; | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
| Z - Reduction in cross section on fracture (%) (+QT) | 40 | 40 | 45 | 50 | 50 |
| Brinell hardness (HBW): (+A) | 248 - 255 |
Equivalent grades of steel 30CrNiMo8 (1.6580)
Warning! Only for reference
| EU EN |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
China GB |
Russia GOST |
Inter ISO |
|||||||
| 30CrNiMo8 |
|
|
|
|
|
|
|
Mechanical properties
| ReH | Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale |
| Rm | Tensile strength / Zugfestigkeit / Resistance a la traction |
| A | Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal |
| J | Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc |
Heat treatment conditions
|
|
|
Alloy special steel |
FAQ:
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for Round Bar , and our company also is a very professional a trade company for steel products.we can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by worker piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
