تفاصيل المنتج:
|
| OD: | 16-500 ملم | طول: | 3-6 م 9 م 12 م |
|---|---|---|---|
| سطح: | أسود ومشرق | يكتب: | المعدات الصناعية |
| الصف الصلب: | سبيكة الصلب | شكل: | دائري |

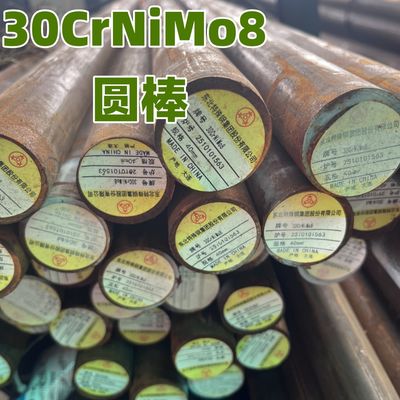

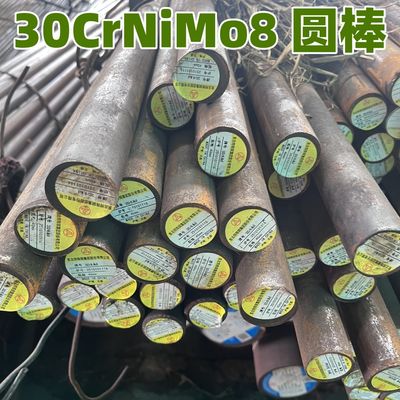

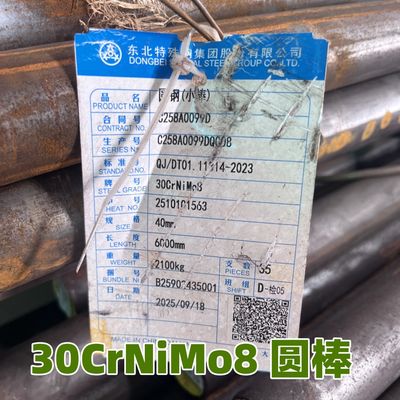

| اسم المنتج: | 1.6580 30CrNiMo8 qt أشرطة مستديرة من الفولاذ | المعالجة السطحية: | أسود / تقشير / تلميع / تشكيله |
| حالة التسليم: | صلب، المدرفلة على الساخن/مزورة | المعالجة الحرارية: | تطبيع + صلب + مروي + خفف |
| إبراز: | DIN 30CrNiMo8 alloy steel round bar,1.6580 hot forged steel bar,30NCD8 QT alloy steel bar,1.6580 hot forged steel bar,30NCD8 QT alloy steel bar |
||
| Grade : | 30CrNiMo8 | ||||
| Number: | 1.6580 | ||||
| Classification: | Alloy special steel | ||||
| Standard: |
|
||||
| Equivalent grades: | Go here |
Chemical composition % of steel 30CrNiMo8 (1.6580): EN 10083-3-2006
| C | Si | Mn | Ni | P | S | Cr | Mo |
| 0.26 - 0.34 | max 0.4 | 0.5 - 0.8 | 1.8 - 2.2 | max 0.025 | max 0.035 | 1.8 - 2.2 | 0.3 - 0.5 |
Mechanical properties of steel 30CrNiMo8 (1.6580)
| Nominal diameter (mm): | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 | 250 - 330 | 330 - 660 |
| Rm - Tensile strength (MPa) (+QT) | 1250-1450 | 1250-1450 | 1000-1300 | 1000-1200 | 850-1100 | 850 | 800 |
| Nominal diameter(mm): or for flat products thickness: to 8; 8-20; 20-60; 60-100; 100-160; | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
| Re - Upper yield strength or Rp0.2 - 0.2% proof strength (MPa) (+QT) |
1050 | 1050 | 900 | 800 | 700 |
| Nominal thickness(mm): | to 160 | 160 - 330 | 330 - 660 |
| Re - Upper yield strength (MPa) (+QT) | 700 | 630 | 590 |
| KV - Impact energy (J) longitud., (+QT) | +20° 30-45 |
| KV - Impact energy (J) transverse, (+QT) | +20° 20-27 |
| A - Min. elongation at fracture (%) transverse, (+QT) | 8-14 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) (+QT), round products | 9 | 9 | 10 | 11 | 12 |
| Nominal diameter (mm): or for flat products thickness: to 8; 8-20; 20-60; 60-100; 100-160; | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
| Z - Reduction in cross section on fracture (%) (+QT) | 40 | 40 | 45 | 50 | 50 |
| Brinell hardness (HBW): (+A) | 248 - 255 |
Equivalent grades of steel 30CrNiMo8 (1.6580)
Warning! Only for reference
| EU EN |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
China GB |
Russia GOST |
Inter ISO |
|||||||
| 30CrNiMo8 |
|
|
|
|
|
|
|
Mechanical properties
| ReH | Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale |
| Rm | Tensile strength / Zugfestigkeit / Resistance a la traction |
| A | Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal |
| J | Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc |
Heat treatment conditions
|
|
|
Alloy special steel |
FAQ:
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for Round Bar , and our company also is a very professional a trade company for steel products.we can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by worker piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
