تفاصيل المنتج:
|
| الاسم: | بار فولاذ مسطح محمص بخارق ساخن | المواد: | س235جيه ار ايه 36 |
|---|---|---|---|
| length: | 1-12m or as required | surface: | black / Galvanized |
| Grade: | Q235 | Application: | Construction,Industry,ships building industry |
| Standard: | ASTM,DIN,AISI | Shape: | Falt Plate |
| النوع: | مستوي | Length: | 5.8-12m |
| شرط السعر: | CIF CFR FOB العمل السابق | ||
| إبراز: | قضبان مسطحة معدنية من الحديد,Q235 قضبان مسطحة معدنية,SS400 القضبان المسطحة المصنعة,Q235 Galvanized Flat Bars,SS400 Galvanized Flat Bars |
||
| Name | hot dip galvanized steel flat bars | ||
| Standard | ASTM, AISI, EN, DIN, JIS, GB | ||
| Grate | A36, S235JR, S355JR,St37-2, SS400, Q235, Q195,Q345 | ||
| Technique | hot rolled, slitted, round edge | ||
| Size | Width | Thickness | Length |
| 10-200mm or customized | 1.5-30mm or customized | 6m, 9m, 12m or customized | |
| OEM | yes | ||
| Tolerance | As the standard or your requirement | ||
| Application | Construction/Shipbuilding/Machinery manufacturing/Steel structure | ||
| Features | 1. High quality | ||
| 2.High dimensional accuracy | |||
| 3. High utilization rate of material | |||
| 4. Saving cost price | |||
| Packing Details | 1. Iron sheet in both ends | ||
| 2.All wrapped packing with plastic woven bag | |||
| 3.Loose package | |||
| 4.As the requirement of customer. | |||
| USA | Japanese | Gemany | British | France | International | Chinese |
| ASTM&AISI&SAE | JIS | EN DIN | EN BS | EN NF | ISO | GB |
| A36 | SS400 | 1.0114 | 1.0114 | 1.0114 | ------ | Q235 |
| A36 |
| C | Si | Mn | S | P | |
| Q235A/B | 0.22 | 0.35 | 1.4 | 0.05 | 0.045 |
| SS400B/SM400B | 0.22 | 0.35 | 0.60-1.40 | 0.05 | 0.04 |
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation | |||
| 400-550 | 250 | 20 |
| Products | Sizes |
| Steel Flat Bar | Thickness 1mm to 70mm |
| Edge size 5mmm to 600mm | |
| Length:Normal 6m, also can be customized | |
| Steel Square Bar | 10*10mm to 150x150mm |
| Length:Normal 6m, also can be customized | |
| Steel Round Bar | Diameter 16mm to 310mm |
| Length:Normal 6m, also can be customized |
| MILD STEEL CARBON FLAT BAR | |||
Width | Thickness | Length | Theoretical Weight |
| 20 | 2.0 | 6/9/12 | 0.31 |
| 20 | 2.5 | 6/9/12 | 0.39 |
| 20 | 2.75 | 6/9/12 | 0.43 |
| 25 | 2.5 | 6/9/12 | 0.49 |
| 25 | 3.75 | 6/9/12 | 0.74 |
| 30 | 2.5 | 6/9/12 | 0.59 |
| 30 | 3.5 | 6/9/12 | 0.82 |
| 30 | 9.75 | 6/9/12 | 2.30 |
| 40 | 3.5 | 6/9/12 | 1.10 |
| 40 | 4.75 | 6/9/12 | 1.50 |
| 40 | 11.75 | 6/9/12 | 3.69 |
| 50 | 2.75 | 6/9/12 | 1.08 |
| 50 | 4.5 | 6/9/12 | 1.77 |
| 50 | 9.75 | 6/9/12 | 3.83 |
| 60 | 5.5 | 6/9/12 | 2.60 |
| 60 | 7.5 | 6/9/12 | 3.53 |
| 60 | 11.5 | 6/9/12 | 5.42 |
| 80 | 5.5 | 6/9/12 | 3.45 |
| 80 | 7.5 | 6/9/12 | 4.71 |
| 80 | 11.75 | 6/9/12 | 7.38 |
| 100 | 3.25 | 6/9/12 | 2.55 |
| 100 | 4.75 | 6/9/12 | 3.73 |
| 100 | 7.5 | 6/9/12 | 5.89 |
| 120 | 9.75 | 6/9/12 | 9.18 |
| 120 | 11.75 | 6/9/12 | 11.07 |
| 150 | 9.75 | 6/9/12 | 11.48 |
| 150 | 11.5 | 6/9/12 | 13.54 |
| 150 | 13.5 | 6/9/12 | 15.90 |
| 160 | 11.75 | 6/9/12 | 14.76 |
| 200 | 9.5 | 6/9/12 | 14.92 |
| 250 | 5.75 | 6/9/12 | 11.28 |
| 340 | 7.75 | 6/9/12 | 20.68 |

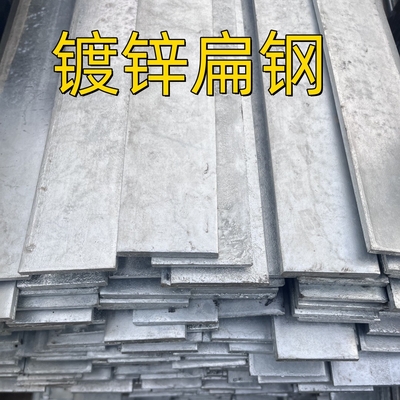

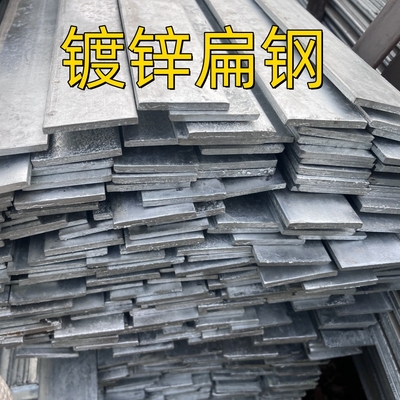

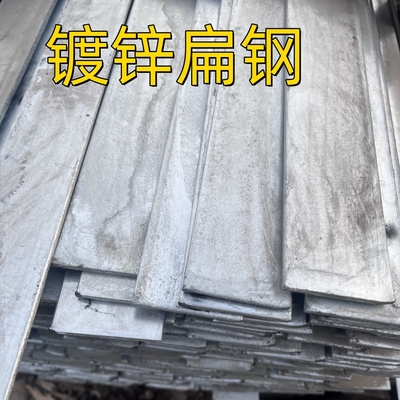

Picture Show
FAQ:
Q1. How long can make delivery?
A: For stock products,will make shipments in 2-5 days after receiving deposit or receiving T/T;
for products need new production for common materials,usually make shipments in 7-10 days;
for products need special and rare materials,usually need 15-20 days to make shipment.
